Klustron Architecture Overview and Cluster Deployment

01 Architecture Introduction and Terminology

1.1 Architecture Introduction

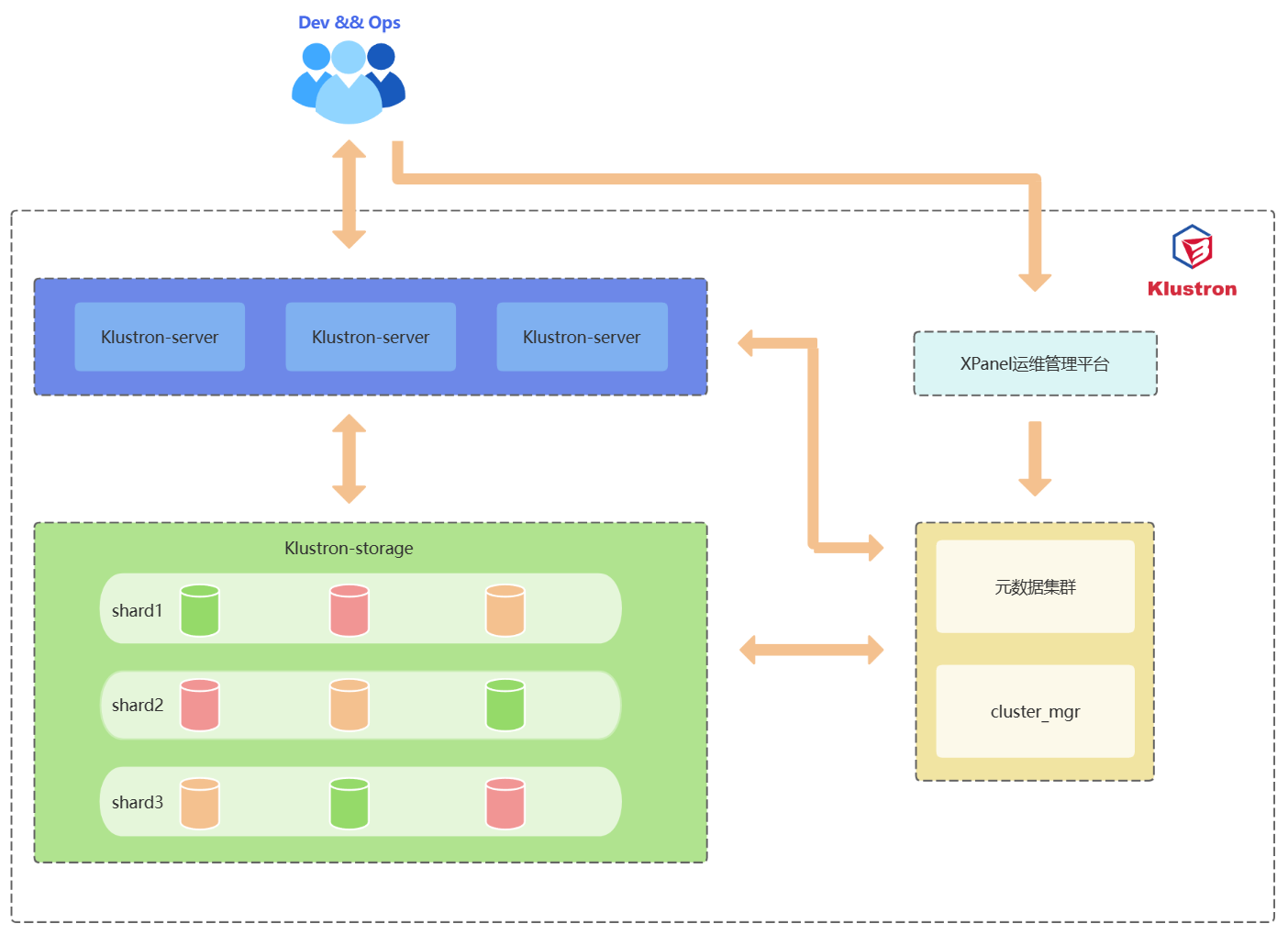

Klustron System Architecture:

1.2 Component Introduction

Introduction to Klustron Cluster Components:

Component Name	Function
Klustron-server	Acts as a compute node, responsible for receiving requests from application clients, processing results returned from storage nodes, and ultimately delivering results back to the clients. Compute nodes are stateless and typically configured within a load balancer. In case of compute node failure, the load balancer directs requests to other functioning nodes to continue servicing application client requests.
Klustron-storage	The storage cluster is responsible for data persistence and financial-grade data consistency. It consists of 2 or more shards, with each shard having 3 replicas: one primary and two replicas. The primary node accepts read and write requests from compute nodes, executes these requests, and returns the results.
Metadata Cluster	Responsible for storing the Klustron cluster's topology, node connection information, DDL logs, commit logs, and other cluster management logs.
cluster_mgr	Maintains accurate cluster and node states, manages cluster administration, logical and physical backups and recovery, and horizontal scaling functions.
XPanel	A GUI tool that provides a web-based cluster management platform, allowing DBAs to easily perform most database maintenance and management tasks with a few clicks.
node_mgr	node_mgr executes commands on corresponding machine nodes as directed by cluster_mgr, and regularly reports the heartbeat information of the cluster primary node. Every machine node has a node_mgr.

1.3 Terminology Introduction

Klustron Terminology:

Term	Explanation
Cluster	In Klustron, a cluster is composed of several compute nodes and several storage cluster shards. For example, Cluster A consists of 3 compute nodes and 2 storage cluster shards.
Compute Node / Klustron-server / CN	Responsible for receiving requests from application clients, processing the results returned by storage nodes, and ultimately returning the results to the clients. Each compute node is stateless and independent. The cluster has multiple compute nodes integrated with a load balancer, so the failure of a single compute node does not impact the cluster, which continues to provide read and write services.
Storage Cluster / Klustron-storage / Shard	A Klustron cluster contains one or more shards, each storing a part of user data, with no overlap between different shards. Each shard has one primary node and several backup nodes, achieving high availability through binlog replication.
Storage Node	Used to store user business data and is a running instance of a kunlun-storage component. Several storage nodes make up a shard, operating as either a primary or a backup node within the shard.
Metadata Cluster / Metadata Shard	A replication group composed of multiple storage nodes, used to manage the metadata of the Klustron cluster, not for storing user business data. The metadata cluster operates as a replication group during runtime and can serve multiple Klustron clusters.
cluster_mgr / Cluster Manager	This node is responsible for receiving Klustron cluster operation and management requests from clients, completing these requests by sending actual actions to various node managers.
XPanel	A web application running in a docker image, allowing users to connect via a browser to perform cluster management operations.
node_mgr / Node Manager	A local command execution node deployed on each working machine, which receives requests from the cluster manager and performs various operations on storage nodes, compute nodes, and other Klustron components on the machine, including but not limited to installation, deletion, stopping, backup, etc.

02 Standard Cluster Deployment

2.1 Pre-Deployment Requirements

2.1.1 Operating System and CPU Architecture

Operating System Version	CPU Architecture (x86_64/AMD64/ARM64)
CentOS 7.5 and above	x86_64 ARM64
CentOS 8	x86_64 ARM64
UnionTech OS V20 (1050a)	AMD64 ARM64
UnionTech OS V20 (1050e)	AMD64 ARM64
openSUSE 15	x86_64
Ubuntu 20.04	x86_64
Kylin v10	x86_64 ARM64

2.1.2 Server Configuration

Recommended Configuration for Testing and Development Environments

For development and testing environments, it is recommended to use at least three machines, each capable of deploying multiple types of components. Below are the specific requirements for various components:

Component	CPU	Memory	Disk Type and Available Space	Network	Number of Deployment	Deployment Notes
Klustron-server	4	8G+	SAS，20G+	Gigabit NIC	1	Can be co-deployed with the storage cluster
Klustron-storage	4	8G+	SAS，20G+	Gigabit NIC	1	A storage cluster requires a minimum of three nodes: one primary and two replicas
Metadata Cluster	4	8G+	SAS,20G+	Gigabit NIC	1	Can be co-deployed with the storage cluster
cluster_mgr	2	4G+	SAS,20G+	Gigabit NIC	1	Can be co-deployed with the storage cluster
XPanel	2	4G+	SAS,10G+	Gigabit NIC	1	Can be co-deployed with the storage cluster
node_mgr	1	2G+	SAS,10G+	Gigabit NIC	1	Automatically deployed on every machine

Configuration Requirements for Production Environments

For production environments, at least six machines are required; if resources permit, it is advisable to use nine machines, comprising 3 compute nodes and 6 storage nodes, with other components co-deployed with storage nodes. Below are the specific requirements for various components:

Component	CPU	Memory	Disk Type and Available Space	Network	Number of Deployment	Deployment Notes
Klustron-server	16	32G+	SSD，20G+	10 Gigabit NIC	3	Deployed independently
Klustron-storage	8	32G+	SSD，200G+	10 Gigabit NIC	3	A storage cluster requires a minimum of three nodes: one primary and two replicas.
Metadata Cluster	4	8G+	SSD,50G+	10 Gigabit NIC	1	Can be co-deployed with the storage cluster
cluster_mgr	4	8G+	SSD,20G+	10 Gigabit NIC	1	Can be co-deployed with the storage cluster
XPanel	4	8G+	SSD,10G+	10 Gigabit NIC	1	Can be co-deployed with compute nodes
node_mgr	1	2G+	SSD,10G+	10 Gigabit NIC	1	Automatically deployed on every machine

2.1.3 Network Configuration

Component	Default Port/Port Range	Port Description
Klustron-server	47000-48000	Port range for pg or mysql client connection access provided by the compute node
Klustron-storage	57000-58000	Port range for storage node communication
Metadata Cluster	6001	Communication port for accessing the Metadata Cluster
cluster_mgr	58000	Raft protocol port for cluster_mgr
cluster_mgr	58001	HTTP protocol port for cluster_mgr
cluster_mgr	59010	Default Prometheus port for cluster_mgr
XPanel	18080	Access port for the XPanel management platform
node_mgr	58002	Default HTTP port for node_mgr
node_mgr	58003	Default TCP port for node_mgr
node_mgr	58010	Default Prometheus port for node_mgr

2.2 Online Deployment

2.2.1 Pre-deployment Preparation - Operations on All Machines

Preparation steps need to be performed on each machine.

Remove System-Installed MariaDB

Run the following commands as root:

yum remove postfix
rpm -e mariadb-libs

Disable the Firewall

Execute the following commands as root:

systemctl stop firewalld
systemctl disable firewalld

Create the kunlun Group and User

Execute the following commands as root and set the user password:

useradd --create-home --shell /bin/bash kunlun
passwd kunlun

Create Relevant Directories and Set Ownership

Create the software installation directory /data1/kunlun, which can be created according to user-defined standards. Here it is assumed the disk is mounted at the /data1 directory, and the directory’s group is set to kunlun.

Execute the following commands as root:

mkdir -p /data1/kunlun /data1/softwares

# /data1/kunlun is the directory where components are installed after deployment, /data1/softwares is the directory for storing installation packages, related scripts, and files before deployment

chown -R kunlun:kunlun /data1/kunlun /data1/softwares

Modify System File Handles

Execute the following command as root:

vim /etc/security/limits.conf

Add the following at the end of the file:

* soft nofile 65536
* hard nofile 200000

Set kunlun User to Execute Root Commands Without a Password via sudo

Execute the following command as root:

visudo
# Add the following at the end:
kunlun ALL=(ALL) NOPASSWD: ALL

2.2.2 Pre-deployment Preparation - Operations on the Control Machine

The preparation steps only need to be performed on the control machine.

Set up SSH Trust Relationships Between the Control Machine and Other Machines

Execute the following command as the kunlun user on the control machine:

ssh-keygen -t rsa

After running the command, press Enter at all prompts. This will generate two files in the .ssh directory under /home/kunlun/: id_rsa (the private key file) and id_rsa.pub (the public key file).

Copy the public key from the control machine to the other servers, including the control machine itself:

ssh-copy-id -i ~/.ssh/id_rsa.pub 192.168.40.151
ssh-copy-id -i ~/.ssh/id_rsa.pub 192.168.40.152
ssh-copy-id -i ~/.ssh/id_rsa.pub 192.168.40.153

Verify passwordless login from the control machine to the other machines by executing:

ssh 192.168.40.151 date
ssh 192.168.40.152 date
ssh 192.168.40.153 date

Install tools such as Python2, git, and wget

Execute the following command as root:

yum -y install python git wget yum-utils

Deploy XPanel

Since XPanel is planned to be deployed on the control machine, Docker needs to be installed and deployed in advance.

Execute the following command as root:

Remove system-installed Docker-related rpms:

yum remove docker \
        docker-client \
        docker-client-latest \
        docker-common \
        docker-latest \
        docker-latest-logrotate \
        docker-logrotate \
        docker-engine

Switch to the Alibaba Cloud mirror:

yum-config-manager --add-repo http://mirrors.aliyun.com/docker-ce/linux/centos/docker-ce.repo

Install the community edition of Docker:

yum -y install docker-ce docker-ce-cli containerd.io

Start Docker and set it to automatically start with the operating system:

systemctl start docker
systemctl enable docker

Download the latest deployment tools

Download the deployment tools to the /data1/softwares directory, execute as root:

cd /data1/softwares
git clone -b 1.1 https://gitee.com/zettadb/cloudnative.git

Download the necessary software packages

Execute the following command as root:

cd /data1/softwares/setuptools-36.5.0/cloudnative/cluster/clustermgr
wget http://zettatech.tpddns.cn:14000/thirdparty/hadoop-3.3.1.tar.gz
wget http://zettatech.tpddns.cn:14000/thirdparty/jdk-8u131-linux-x64.tar.gz
wget http://zettatech.tpddns.cn:14000/thirdparty/mysql-connector-python-2.1.3.tar.gz
wget http://zettatech.tpddns.cn:14000/thirdparty/prometheus.tgz
wget http://zettatech.tpddns.cn:14000/thirdparty/haproxy-2.5.0-bin.tar.gz
wget http://zettatech.tpddns.cn:14000/thirdparty/efk/filebeat-7.10.1-linux-x86_64.tar.gz


VERSION=1.1.2
wget http://downloads.Klustron.com//releases/$VERSION/release-binaries/kunlun-cluster-manager-$VERSION.tgz
wget http://downloads.Klustron.com//releases/$VERSION/release-binaries/kunlun-node-manager-$VERSION.tgz
wget http://downloads.Klustron.com//releases/$VERSION/release-binaries/kunlun-server-$VERSION.tgz
wget http://downloads.Klustron.com//releases/$VERSION/release-binaries/kunlun-storage-$VERSION.tgz
wget http://downloads.Klustron.com//releases/$VERSION/release-binaries/kunlun-proxysql-$VERSION.tgz

chown -R kunlun:kunlun /data1/softwares/

2.2.3 Deployment and Installation

Edit the deployment topology JSON file

On the control machine, use the kunlun user to modify the file /data1/softwares/setuptools-36.5.0/cloudnative/cluster/cluster_and_node_mgr.json with relevant configuration information. Here we use the machines at 192.168.40.151 (control machine), 192.168.40.152, and 192.168.40.153 as examples.

{
    "machines":[
        {
            "ip":"192.168.40.151",
            "basedir":"/data1/kunlun",
            "user":"kunlun"
        },
        {
            "ip":"192.168.40.152",
            "basedir":"/data1/kunlun",
            "user":"kunlun"
        },
        {
            "ip":"192.168.40.153",
            "basedir":"/data1/kunlun",
            "user":"kunlun"
        }
    ],
    "meta":{
        "ha_mode": "rbr",
        "nodes":[
         {
         "ip":"192.168.40.151"
                },
                {
         "ip":"192.168.40.152"
                },
                {
         "ip":"192.168.40.153"
                }
        ]
    },
    "cluster_manager": {
           "nodes": [
        {
         "ip": "192.168.40.151"
        },
        {
         "ip": "192.168.40.152"
        },
        {
         "ip": "192.168.40.153"
        }
        ]
    },
    "node_manager": {
           "nodes": [
        {
         "ip": "192.168.40.151"
        },
        {
         "ip": "192.168.40.152"
        },
        {
         "ip": "192.168.40.153"
        }
        ]
    },
    "xpanel": {
    "ip": "192.168.40.151",
    "image": "registry.cn-hangzhou.aliyuncs.com/kunlundb/kunlun-xpanel:1.1.2"
    }
}

Execute the Installation

Generate the installation script

On the control machine, use the kunlun user to execute the following command:

cd /data1/softwares/setuptools-36.5.0/cloudnative/cluster
sudo python2 setup_cluster_manager.py --autostart --config=cluster_and_node_mgr.json --product_version=$version --action=install
# $version refers to the cluster version to install, for example: 1.1.2

Example:

sudo python2 setup_cluster_manager.py --autostart --config=cluster_and_node_mgr.json --product_version=1.1.2 --action=install

Run the installation script

On the control machine, use the kunlun user to execute the following command:

bash -e /data1/softwares/setuptools-36.5.0/cloudnative/cluster/clustermgr/install.sh

Log in to XPanel for Cluster Creation

Access the XPanel console via a browser on a machine that can access 192.168.40.151. Open a browser and enter the URL: http://192.168.40.151:18080/KunlunXPanel

The initial login username and password are: super_dba/super_dba. You will need to change the super_dba password upon first login.

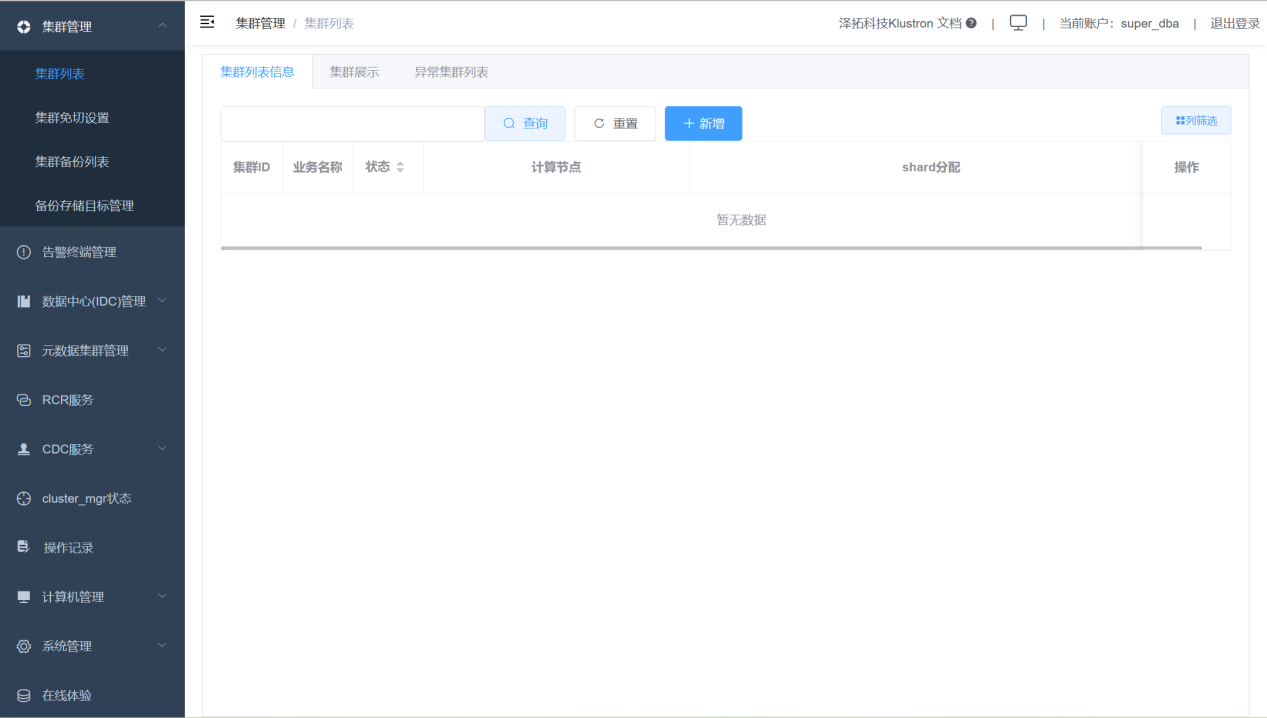

After logging in, the homepage appears as shown below:

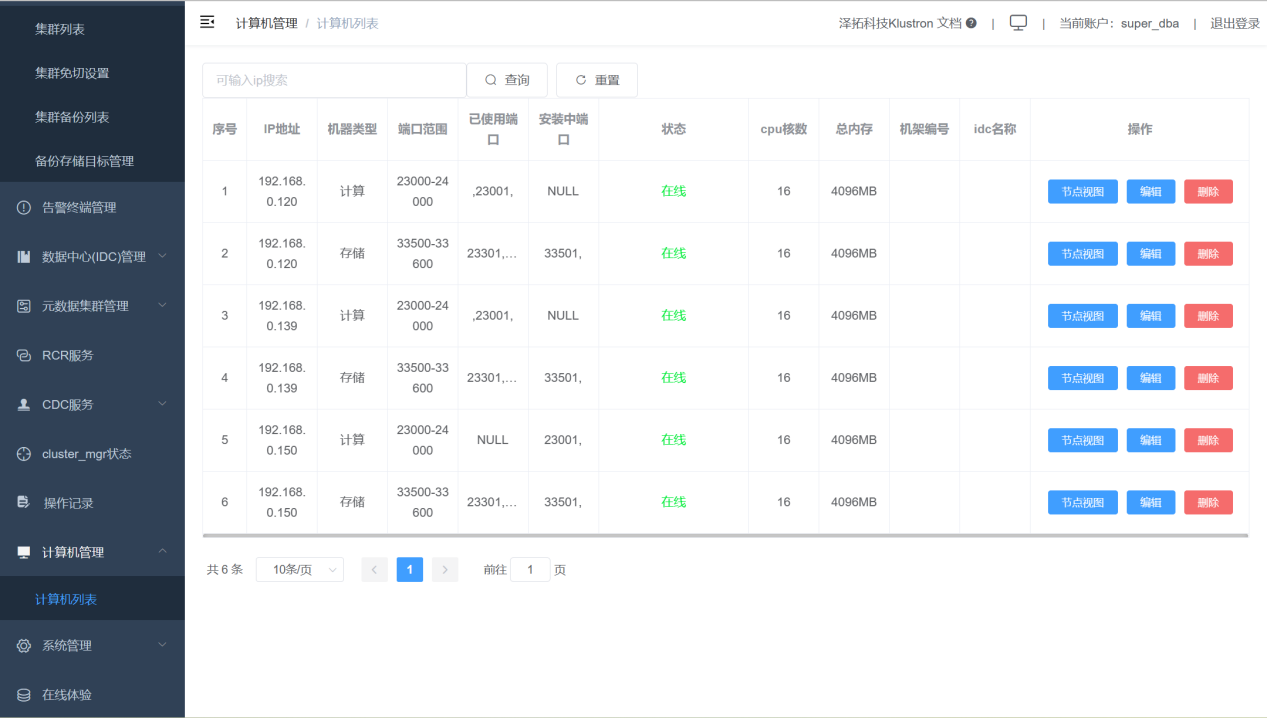

Click on the "Computer Management" then "Computer List" on the left control bar, displaying the following interface.

Check that all machines are online:

Add a cluster.

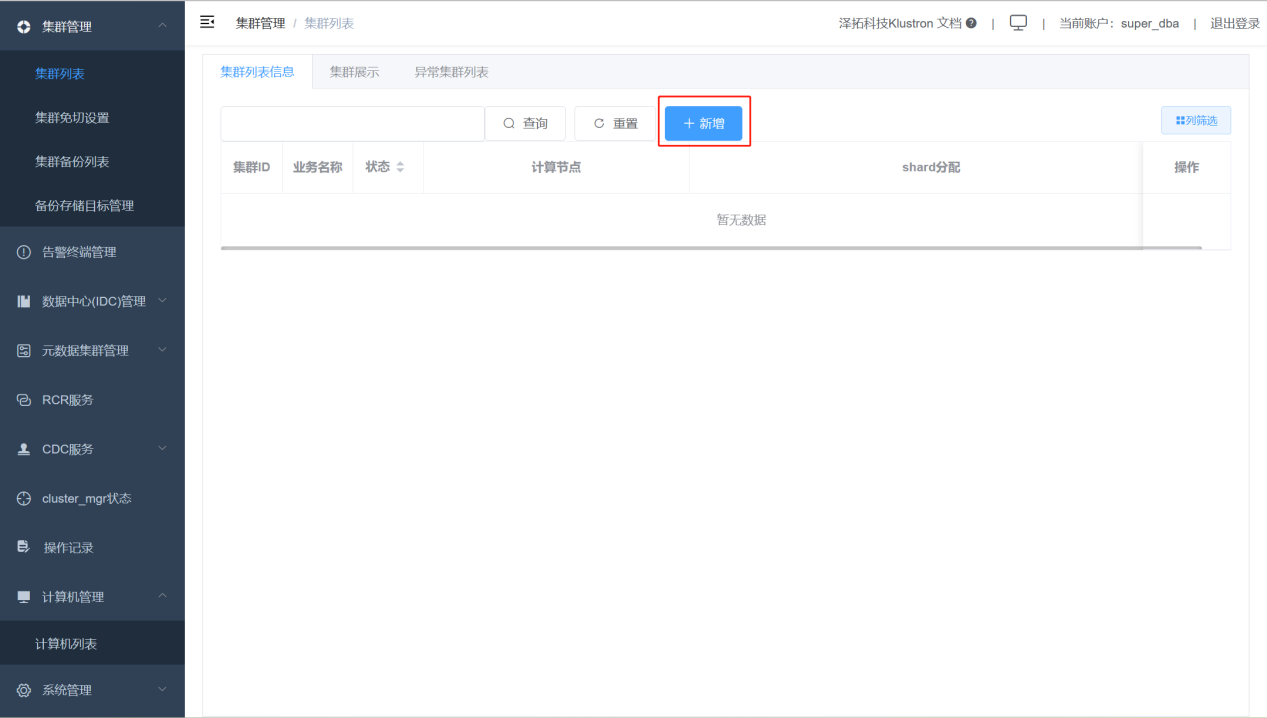

Click "Cluster Management," "Cluster List," then click the "Add" button.

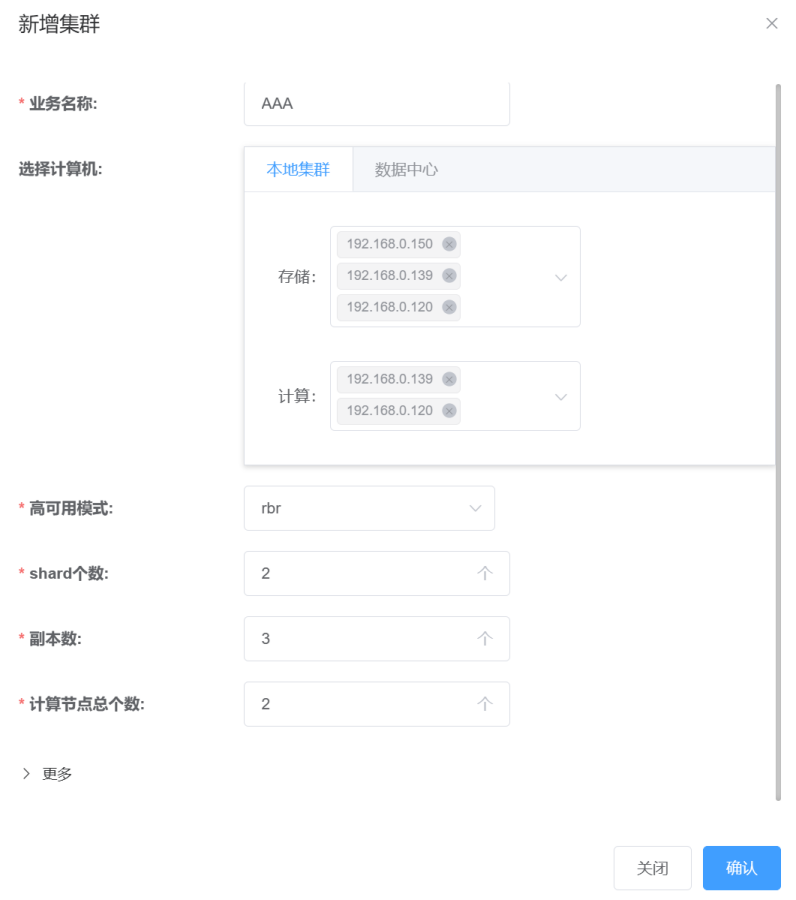

Add cluster parameters as shown below:

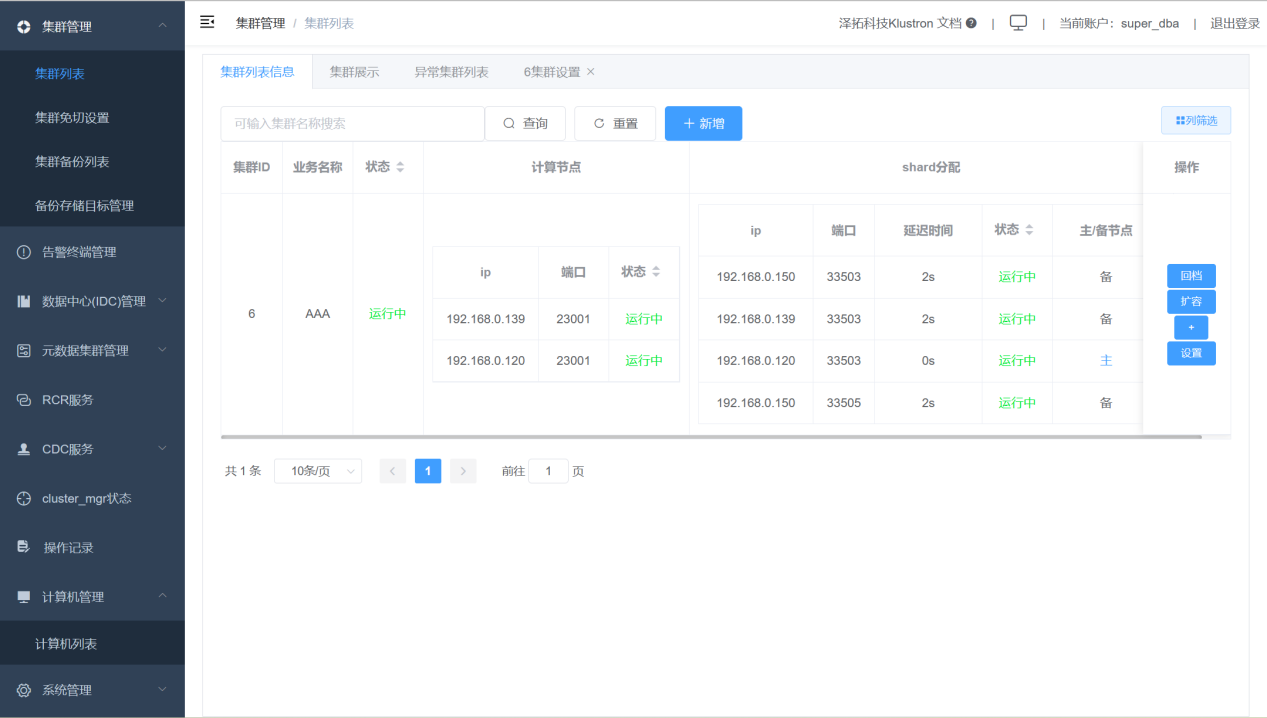

After completing the cluster installation, you can use the Klustron Cluster by connecting to the compute node's IP and port. The default username and password are abc. After logging in, users can create new users and change passwords as per their needs.

PostgreSQL and MySQL Protocol Login Verification

Tips: PostgreSQL and MySQL protocols use different ports for login access, details can be seen in XPanel under "Cluster List" -> "Settings" -> "Compute Node List."

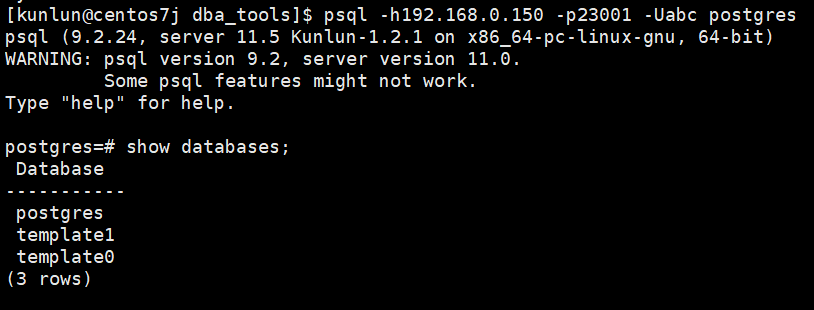

PostgreSQL login verification:

psql -h192.168.0.150 -p23001 -Uabc postgres

As shown:

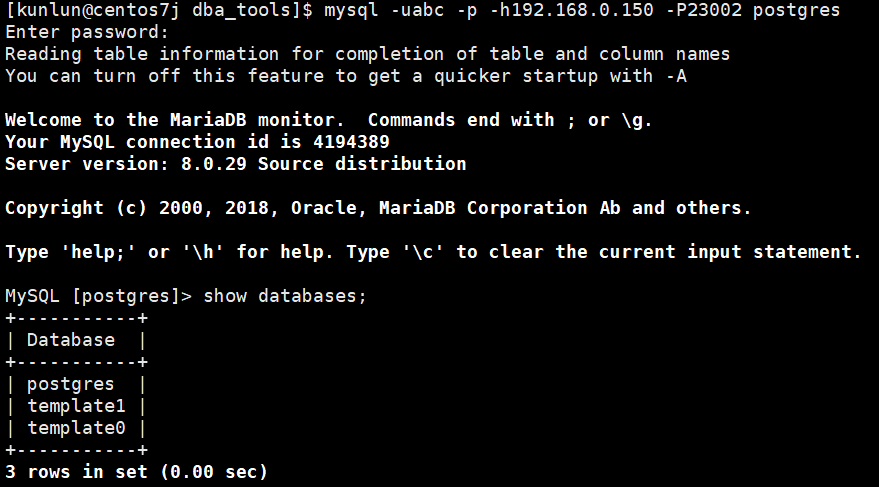

MySQL login verification:

mysql -uabc -p -h192.168.0.150 -P23002 postgres

As shown:

2.3 Offline Deployment

2.3.1 Pre-deployment Preparation - Operations on All Machines

Preparation steps need to be performed on each machine.

Remove system-installed MariaDB

Run the following commands as root:

yum remove postfix
rpm -e mariadb-libs

Disable the firewall

Execute the following commands as root:

systemctl stop firewalld
systemctl disable firewalld

Create the kunlun group and kunlun user

Execute the following commands as root and set the user password:

useradd --create-home --shell /bin/bash kunlun

passwd kunlun

Create relevant directories and set ownership

Create the software installation directory /data1/kunlun, which can be created according to user-defined standards. Here, assuming the disk is mounted at the /data1 directory, and the directory’s group is set to kunlun.

Execute the following commands as root:

mkdir -p /data1/kunlun /data1/softwares
# /data1/kunlun for directories after component installation, /data1/softwares for storing installation packages, related scripts, and files before deployment
chown -R kunlun:kunlun /data1/kunlun /data1/softwares

Modify system file handles

Execute the following command as root:

vim /etc/security/limits.conf

Add the following at the end of the file:

* soft nofile 65536

* hard nofile 200000

Set kunlun user to execute root commands without a password via sudo

Execute the following command as root:

visudo
# Add the following at the end:
kunlun ALL=(ALL) NOPASSWD: ALL

2.3.2 Pre-deployment Preparation - Operations on the Control Machine

The preparation steps only need to be performed on the control machine.

Set up SSH trust relationships between the control machine and other machines

Execute the following command as the kunlun user on the control machine:

ssh-keygen -t rsa

After running the command, press Enter at all prompts. This will generate two files in the .ssh directory under /home/kunlun/: id_rsa (the private key file) and id_rsa.pub (the public key file).

Copy the public key from the control machine to the other servers, including the control machine itself:

ssh-copy-id -i ~/.ssh/id_rsa.pub 192.168.40.151
ssh-copy-id -i ~/.ssh/id_rsa.pub 192.168.40.152
ssh-copy-id -i ~/.ssh/id_rsa.pub 192.168.40.153

Verify passwordless login from the control machine to the other machines by executing:

ssh 192.168.40.151 date
ssh 192.168.40.152 date
ssh 192.168.40.153 date

Install tools such as Python2, git, and wget

Execute the following command as root:

yum -y install python git wget yum-utils

Install Docker service

Since XPanel is planned to be deployed on the control machine, Docker needs to be installed and deployed in advance.

Execute the following command as root:

Remove system-installed Docker-related rpms:

yum remove docker \
        docker-client \
        docker-client-latest \
        docker-common \
        docker-latest \
        docker-latest-logrotate \
        docker-logrotate \
        docker-engine

Install the community edition of Docker:

yum -y install docker

Start Docker and set it to automatically start with the operating system:

systemctl start docker
systemctl enable docker

Upload installation tools and packages to the server

Download and package the latest deployment tools and installation packages online, or download the corresponding offline deployment packages after consulting the Klustron team

Online download and packaging (taking version v1.2.2 as an example, download the corresponding version based on actual requirements):

Download the deployment tools to the /data1/softwares directory, execute as root:

cd /data1/softwares
git clone -b 1.1 https://gitee.com/zettadb/cloudnative.git

Download the necessary software packages

Execute the following command as root:

cd /data1/softwares/setuptools-36.5.0/cloudnative/cluster/clustermgr
wget http://zettatech.tpddns.cn:14000/thirdparty/hadoop-3.3.1.tar.gz
wget http://zettatech.tpddns.cn:14000/thirdparty/jdk-8u131-linux-x64.tar.gz
wget http://zettatech.tpddns.cn:14000/thirdparty/mysql-connector-python-2.1.3.tar.gz
wget http://zettatech.tpddns.cn:14000/thirdparty/prometheus.tgz
wget http://zettatech.tpddns.cn:14000/thirdparty/haproxy-2.5.0-bin.tar.gz
wget http://zettatech.tpddns.cn:14000/thirdparty/efk/filebeat-7.10.1-linux-x86_64.tar.gz


VERSION=1.2.2
wget http://downloads.Klustron.com//releases/$VERSION/release-binaries/kunlun-cluster-manager-$VERSION.tgz
wget http://downloads.Klustron.com//releases/$VERSION/release-binaries/kunlun-node-manager-$VERSION.tgz
wget http://downloads.Klustron.com//releases/$VERSION/release-binaries/kunlun-server-$VERSION.tgz
wget http://downloads.Klustron.com//releases/$VERSION/release-binaries/kunlun-storage-$VERSION.tgz
wget http://downloads.Klustron.com//releases/$VERSION/release-binaries/kunlun-proxysql-$VERSION.tgz

chown -R kunlun:kunlun /data1/softwares/

2.3.3 Deployment and Installation

Edit the deployment topology JSON file

On the control machine, use the kunlun user to modify the file /data1/softwares/setuptools-36.5.0/cloudnative/cluster/cluster_and_node_mgr.json, adding relevant configuration information. Here we use the machines at 192.168.40.151 (control machine), 192.168.40.152, and 192.168.40.153 as examples.

A difference from the online deployment is the XPanel part; in offline deployment, there is no "image" attribute, only an "imageType": "file" attribute.

{
    "machines":[
        {
            "ip":"192.168.40.151",
            "basedir":"/data1/kunlun",
            "user":"kunlun"
        },
        {
            "ip":"192.168.40.152",
            "basedir":"/data1/kunlun",
            "user":"kunlun"
        },
        {
            "ip":"192.168.40.153",
            "basedir":"/data1/kunlun",
            "user":"kunlun"
        }
    ],
    "meta":{
        "ha_mode": "rbr",
        "nodes":[
         {
         "ip":"192.168.40.151"
                },
                {
         "ip":"192.168.40.152"
                },
                {
         "ip":"192.168.40.153"
                }
        ]
    },
    "cluster_manager": {
           "nodes": [
        {
         "ip": "192.168.40.151"
        },
        {
         "ip": "192.168.40.152"
        },
        {
         "ip": "192.168.40.153"
        }
        ]
    },
    "node_manager": {
           "nodes": [
        {
         "ip": "192.168.40.151"
        },
        {
         "ip": "192.168.40.152"
        },
        {
         "ip": "192.168.40.153"
        }
        ]
    },
    "xpanel": {
    "ip": "192.168.40.151",
    "imageType": "file"
    }
}

Execute the Installation

Generate the installation script

On the control machine, use the kunlun user to execute the following command:

cd /data1/softwares/setuptools-36.5.0/cloudnative/cluster
sudo python2 setup_cluster_manager.py --autostart --config=cluster_and_node_mgr.json --product_version=$version --action=install
# $version refers to the cluster version to install, for example: 1.2.2

Example:

sudo python2 setup_cluster_manager.py --autostart --config=cluster_and_node_mgr.json --product_version=1.2.2 --action=install

Run the installation script

On the control machine, use the kunlun user to execute the following command:

bash -e /data1/softwares/setuptools-36.5.0/cloudnative/cluster/clustermgr/install.sh

Log in to XPanel for Cluster Creation

Log in to the XPanel console via a browser on a machine that can access 192.168.40.151. Enter the address: http://192.168.40.151:18080/KunlunXPanel

The initial login username and password are: super_dba/super_dba. You will need to change the super_dba password upon first login.

After logging in, the homepage appears as shown below:

Click on "Computer Management" and then "Computer List" in the left control bar, displaying the following interface.

Check that all machines are online:

Add a cluster.

Click "Cluster Management," "Cluster List," then click the "Add" button.

Add cluster parameters as shown below:

PostgreSQL and MySQL Protocol Login Verification

Tips: PostgreSQL and MySQL protocols use different ports for login access; for specific ports, see "Cluster List" -> "Settings" -> "Compute Node List" in XPanel.

PostgreSQL login verification:

psql -h192.168.0.150 -p23001 -Uabc postgres

As shown:

MySQL login verification:

mysql -uabc -p -h192.168.0.150 -P23002 postgres

As shown:

2.4 Deployment of Other Components

2.4.1 HDFS Deployment

Single Node HDFS Deployment

HDFS Cluster Deployment

Klustron Architecture Overview and Cluster Deployment

# Klustron Architecture Overview and Cluster Deployment

# 01 Architecture Introduction and Terminology

# 1.1 Architecture Introduction

# 1.2 Component Introduction

# 1.3 Terminology Introduction

# 02 Standard Cluster Deployment

# 2.1 Pre-Deployment Requirements

# 2.1.1 Operating System and CPU Architecture

# 2.1.2 Server Configuration

# 2.1.3 Network Configuration

# 2.2 Online Deployment

# 2.2.1 Pre-deployment Preparation - Operations on All Machines

# 2.2.2 Pre-deployment Preparation - Operations on the Control Machine

# 2.2.3 Deployment and Installation

# 2.3 Offline Deployment

# 2.3.1 Pre-deployment Preparation - Operations on All Machines

# 2.3.2 Pre-deployment Preparation - Operations on the Control Machine

# 2.3.3 Deployment and Installation

# 2.4 Deployment of Other Components

# 2.4.1 HDFS Deployment

Klustron Architecture Overview and Cluster Deployment

01 Architecture Introduction and Terminology

1.1 Architecture Introduction

1.2 Component Introduction

1.3 Terminology Introduction

02 Standard Cluster Deployment

2.1 Pre-Deployment Requirements

2.1.1 Operating System and CPU Architecture

2.1.2 Server Configuration

2.1.3 Network Configuration

2.2 Online Deployment

2.2.1 Pre-deployment Preparation - Operations on All Machines

2.2.2 Pre-deployment Preparation - Operations on the Control Machine

2.2.3 Deployment and Installation

2.3 Offline Deployment

2.3.1 Pre-deployment Preparation - Operations on All Machines

2.3.2 Pre-deployment Preparation - Operations on the Control Machine

2.3.3 Deployment and Installation

2.4 Deployment of Other Components

2.4.1 HDFS Deployment
